Building my spider Model

This is my first build of models and using xlights to sequence a simple light show.

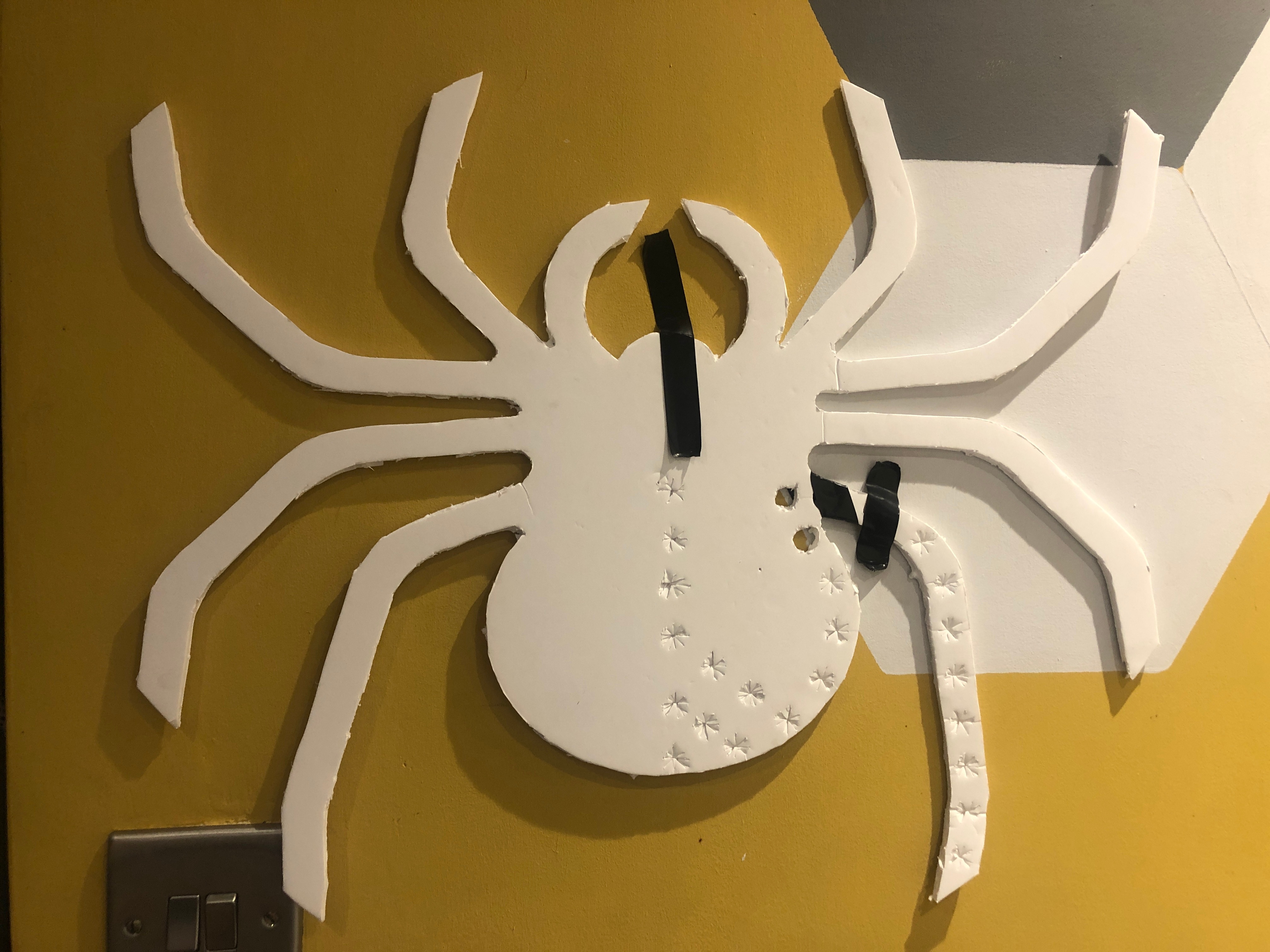

I firstly built some models using foam board which proved problematic but as a first attempt was ok to use.

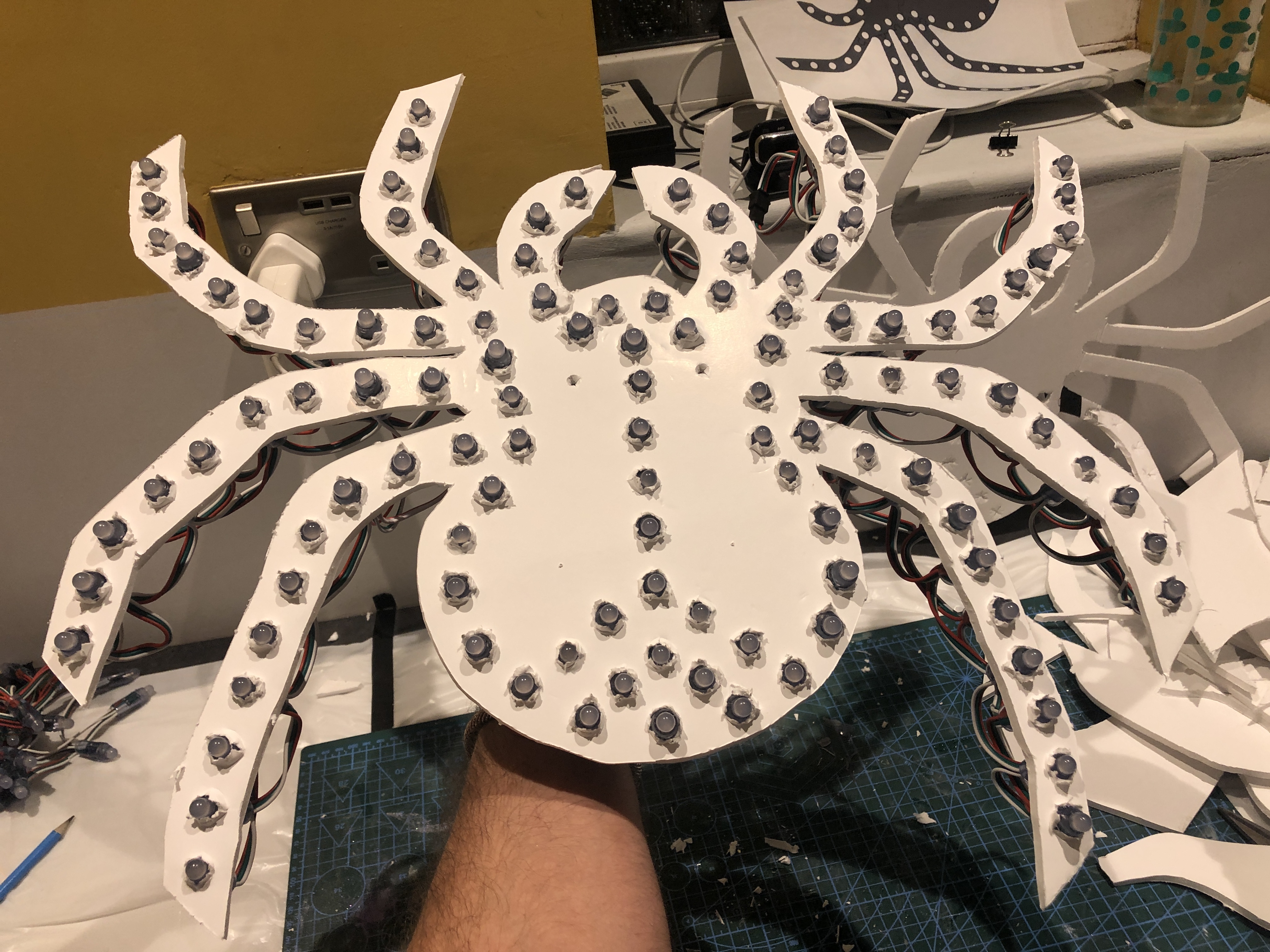

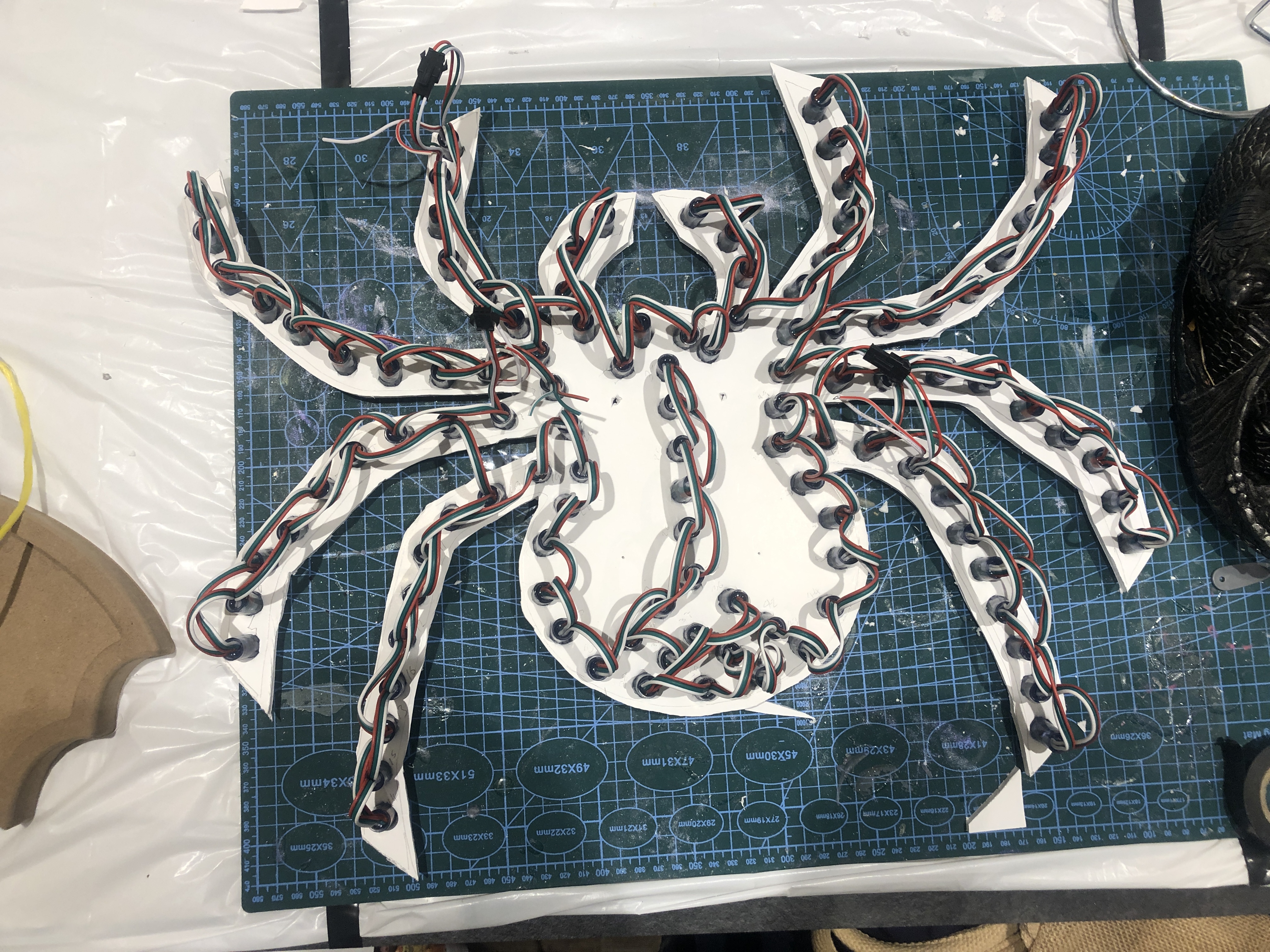

The first model I made was a large spider model, I got an image from google, sized it to the size I needed (A3) punched out the 12mm holes and then cut around the shape to make it. I then laid out the pixels and started inserting them keeping an eye on the numbering to map it into Xlights.

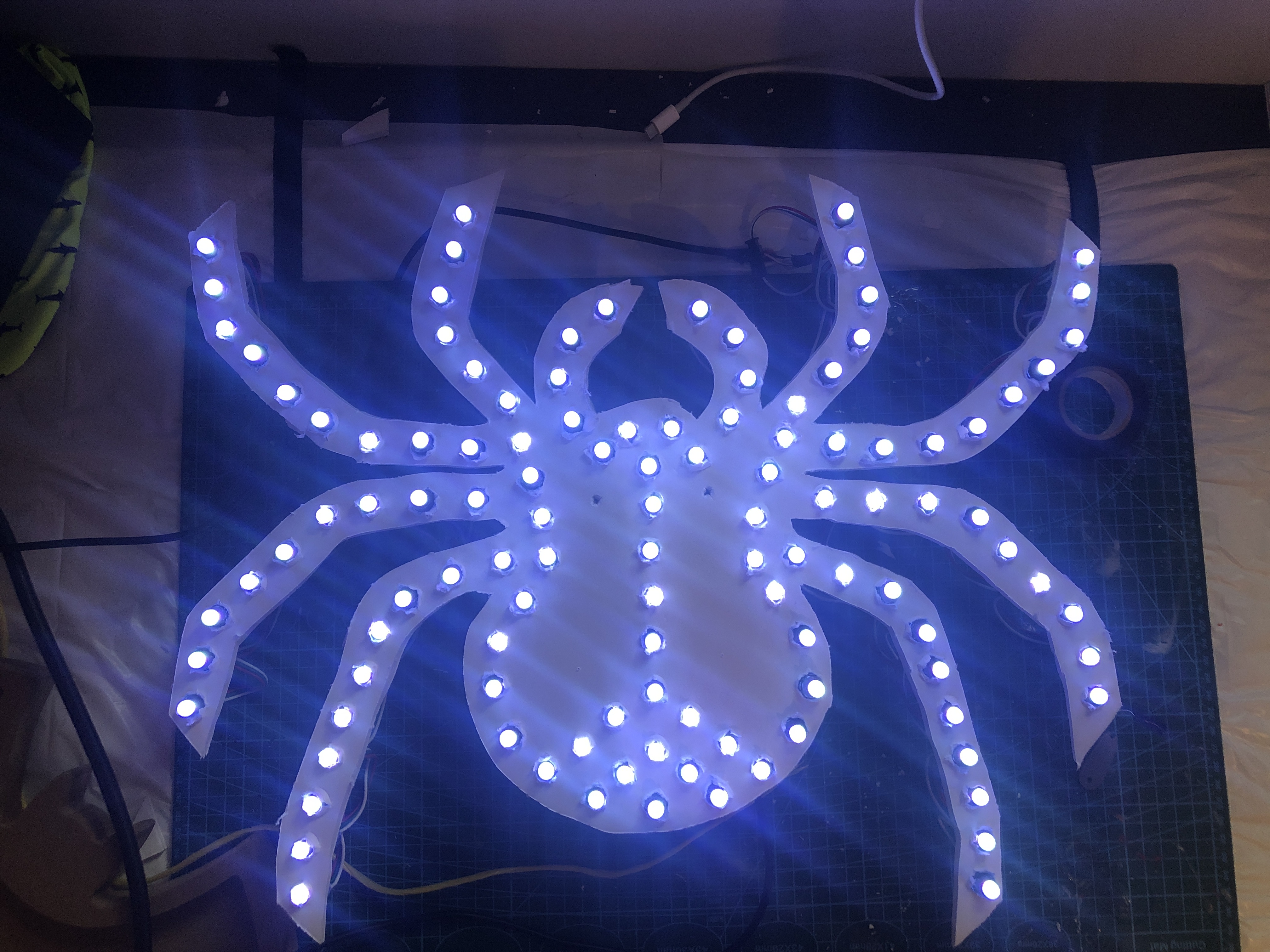

I am using a WLED controller to control the lights and used this test the lights
